Non Fried Instant Noodle Production Line

This Non Fried Instant Noodle Production Line is used for producing circular and square shaped noodles. This machine uses cup, bag and blow pack as its packaging materials. It produces 10000 to 300000 kg of products in every 8 hours. Designed by competent personnel, this equipment is capable of performing tasks like flour blending, aging and pressing of dough, steaming, cutting, dividing, drying and cooling without any error.  Available in different design, working capacity and other specifications based options, this machine require 4 to 8 labors to manage it.  Quality of this machine has been verified on the basis of its diameter, operating cost, output, working life and functional stability. We are a prestigious manufacturer and exporter of Non Fried Instant Noodle Production Line.

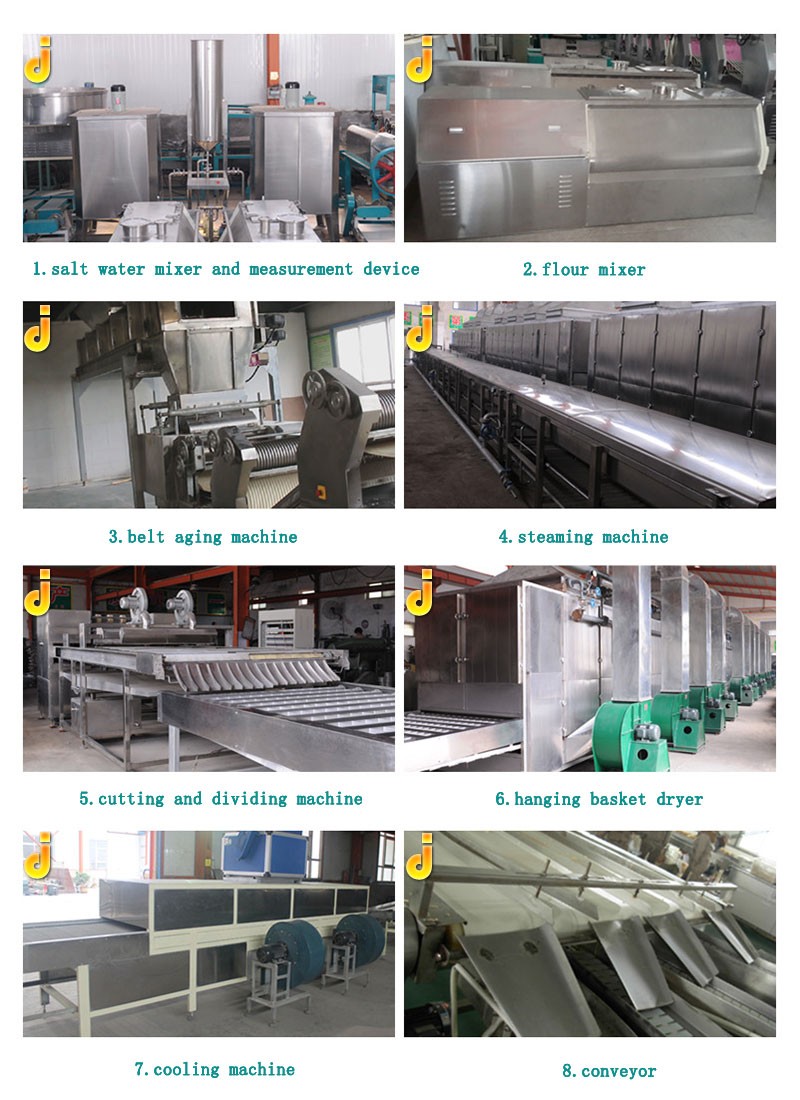

Production Flow:



Specification:

Model	Power	Steam Consume	Area(m)	Worker
11000bags/8h	Electric 85kw Steam 11kw	400-600KG/H When steam is power	L25*W2*H3	4
20,000bags/8h	Electric95kw	600-800KG/H When steam is power	L30*W2*H3	4
	Steam 20kw
30,000bags/8h	35KW	800-900KG/H	L38*W2*H4	4
40,000bags/8h	42KW	900-1000KG/H	L45*W2*H4	4
60,000bags/8h	56KW	1000-1200KG/H	L55*W2*H4	4
80,000bags/8h	68KW	1300-1500KG/H	L68*W2*H4	5
100,000bags/8h	80KW	1600-2000KG/H	L78*W2.6*H4	6
120,000bags/8h	83KW	1800-2000KG/H	L90*W2.8*H4.4	6
160,000bags/8h	106KW	2200-2400KG/H	L98*W3.5*H4.5	7
200,000bags/8h	114kw	2400-2700KG/H	L110*W3.5*H4.5	8
230,000bags/8h	125kw	2600-2800KG/H	L120*W3.8*H4.5	8
